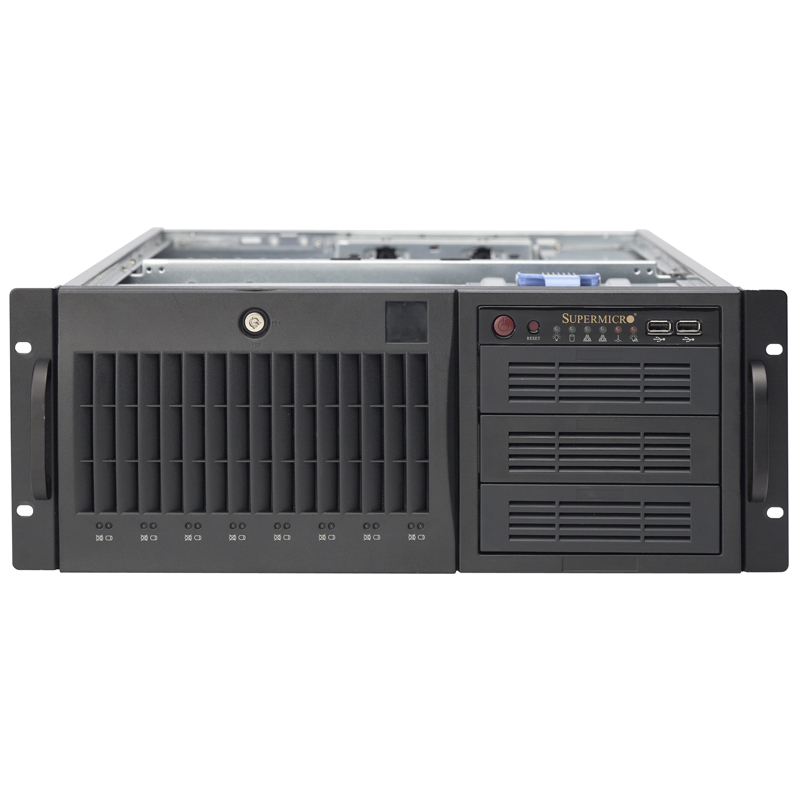

4U Tower/Rack - black (452x178x647mm) - Rackmount kit / 900W High Efficiency PSU Gold Level / Single socket P (LGA 2066) / Intel® C422 Chipset / 1x Intel® Xeon® W-2265, 12x 3.50GHz - 165W (Cascade Lake) / 4 x 8GB DDR4 non-ECC (32GB - max. 256GB) / 7.1 HD Audio / Optical: Optional / 512GB - TLC - PCI-E x4 – NVMe - M.2 2280 /  6x USB 2.0 (2 Front + 4x via headers) - 6x USB 3.0 (4x rear + 2x via headers) - 2x USB 3.1 (2x rear) - 1x RJ45 Gigabit Ethernet LAN port - 1x RJ45 5G LAN port - 1x VGA (IPMI) - 1x COM-Port (header) / Microsoft Windows 10 Pro, 64-bit /  Garantie: 36 months bring-in (Advanced Replacement) - optional: 36/60 month on-site service NBD   Key Features   Case: 4U / Full Tower Chassis  900W Platinum Level Certified High-Efficiency Power Supply Whisper-Quiet (<27dB) 8x 3.5" SAS/SATA Backplane for Hot-Swappable Drives Front HDD Door Lock & Side Panel Intrusion Switch Front I/O Ports: 2x USB 3.0 2x 8cm PWM Fans & 1x 9cm Rear PWM Fan 3x 5.25" External HDD Drive Bays & 8x 3.5" Hot-Swappable HDD Drives

Mid Tower - Black / 900W High Efficiency PSU Platin Level / Single socket R4 (LGA2066) / 1x Intel® Xeon® W-2235, 6x 3.80GHz - 130W (Cascade Lake) / 4 x 8GB DDR4 ECC (128GB - max. 512GB) / Grafik: OPTIONAL / 7.1 HD Audio / Optical: Optional / 1x 512 GB - TLC - PCI-E x4 NVMe M.2 /  6x USB 2.0 (2x rear + 2 Front + 2x via headers) - 6x USB 3.0 (4x rear + 2x via headers) - 2x USB 3.1 (2x rear) - 1x RJ45 Gigabit Ethernet LAN port - 1x RJ45 5G LAN port - 1x VGA (IPMI) - 1x COM-Port (header) / OS: Microsoft® Windows 10 Pro - 64-bit /  Garantie: 36 months bring-in (Advanced Replacement) - optional: 36/60 month on-site service NBD Dassault Systemes Certified High-Performance Workstations Design & Engineering, Manufacturing & Production, Simulation, Governance & Lifecycle, 3D Design Experience for Professionals   Key Features 1.ProcessorIntel® Xeon® W-2100 Processors, Intel® Xeon® W-2200 Processors  2.System Memory Up to 512GB Registered ECC RDIMM or up to 1TB Registered ECC LRDIMM, DDR4-2666MHz in 8 DIMMs  3. On-Board Devices Single LAN with Intel® PHY I219LM LAN controller Single LAN with Aquantia 5G LAN chip AQC108  4.Expansion Slots 3 PCI-E 3.0 x16 1 PCI-E 3.0 x4  M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1  5. Input / Output 1 RJ45 Gigabit Ethernet LAN ports 1 RJ45 5GBase-T ports 6 USB 2.0 ports (2 rear + 4 via headers) 6 USB 3.2 Gen1 ports (4 Rears Type A, 2 via headers) 2 USB 3.2 Gen2 ports (2 Rear Type A) 1 PS2 KB/Mouse 1 COM Ports (1 rear) 1 TPM Header

Mid Tower - Black / 475x240x547mm / 850W High Efficiency PSU Gold Level / Single socket H5 (LGA 1200) / Intel® W480 Chipset / Intel® Core™ i7-10700 - 8x 2.90GHz - 65W / 2x 16GB DDR4-2933 non-ECC unb. (total 32GB) / NVIDIA GeForce RTX308010GB / 1x SSD 512 GB - TLC - PCI-e 3.0 x4 - M.2 - NVMe (OS+APPs) + 1x SSD 1024 GB - TLC - PCI-e 3.0 x4 - M.2 - NVMe (DATA) / HDD: 4x OPTIONAL / ODD: OPTIONAL / Microsoft© Windows 10 Pro / Guarantee: 36 months incl. advance replacement (components)   Key Features 1.Processor 10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/ Intel® Xeon® W-1200 Processors  2.System Memory Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots  3. On-Board Devices Single LAN with Intel® PHY I219LM LAN Ethernet Controller Single LAN with Intel® Ethernet i225V  4.Expansion Slots 2 PCI-E 3.0 x16 1 PCI-E 3.0 x4 1 PCI-E 3.0 x1 1 - 5V PCI 32bit M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1  5. Input / Output 1 RJ45 Gigabit Ethernet LAN port 1 RJ45 2.5 Gigabit Ethernet LAN port 2 USB 2.0 ports (2 via headers) 3 USB 3.2 Gen1 ports (2 Type A, 1 via headers) 5 USB 3.2 Gen2 ports (3 Rear Type A + 1 Rear Type C, 4 via headers) 1  DP, 1 HDMI, 1 DVI - D 1 COM Ports (1 header) 1 TPM Header

Mid Tower - Black / 900W High Efficiency PSU Gold Level / Single socket P (LGA 3647) / Intel® C621 Chipset / Intel® Xeon Silver 4208 - 8x 2.10GHz - 85W / 6x 8GB DDR4-3200 ECC REG (total 48GB) / GPU: OPTIONAL / 2x SSD 512GB - TLC - NVMe PCIe 3.0 x4 / 2x SSD 3.84TB - TLC - SATA 6Gb/s / 2,5" / HDD: 4x OPTIONAL / ODD: OPTIONAL / Microsoft© Windows 10 Pro 64-bit DE / Guarantee: 36 months incl. advance replacement (components) Key Features 1.Processor 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors 2.System Memory Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz  in 12 DIMMs 3. On-Board Devices Single LAN with Intel® Ethernet Controller I210-AT Single LAN with with Aquantia® AQC107 10G Ethernet Controller Single LAN with Realtek RTL8211E PHY (dedicated IPMI) 4.Expansion Slots 4 PCI-E 3.0 x16 3 PCI-E 3.0 x8 (in x16 slot) M.2 Interface: 4 PCI-E 3.0 x4, RAID 0 & 1 5. Input / Output 1 RJ45 Gigabit Ethernet LAN ports 1 RJ45 10GBase-T ports 1 RJ45 Dedicated IPMI LAN port 2 USB 2.0 ports ( 2 via headers) 6 USB 3.1 Gen1 ports (4 Rears Type A, 2 via headers) 4 USB 3.1 Gen2 ports (1 Rear Type A + 1 Rear Type C, 1 Type A + 1 Type C) 1 VGA port - dedicated for IPMI 2 COM Ports (1 rear, 1 header) 1 TPM Header

4U Tower/Rack - black (452x178x647mm) - Rackmount assembly kit / 900W High Efficiency PSU Gold Level / Single socket H5 (LGA 1700) / Chipset: Intel® W680 / 1x Intel® Core™ i9-13900F, 8x 2.0GHz - 65W / 2x 16GB DDR5-4800 non-ECC unb.  (total: 32GB - max.128GB) / Nvidia RTX 3080 - 10GB GDDR6 -1x HDMI + 3x DP/ 1.024GB TLC M.2 2280 - PCI-E 4.0 x4 - NVMe / HDD or SSD: 8x OPTIONAL / Single-Port 1000BASE-T Network Adapter + Single Port 2,5GBase-T Network Adapter / Microsoft© Windows 11 Pro Workstation - 64-bit - DE - pre-installation / Guarantee: 36 months incl. advance replacement (components)

Mid Tower - Black / 500W High Efficiency PSU Bronze Level / Single socket P (LGA 3647) / Intel® C621 Chipset / Intel® Xeon Silver 4215R - 8x 3.20GHz - 130W / 6x 16GB DDR4-2933 ECC REG / 2x Nvidia Quadro P1000-V2 / 1x SSD 1024 GB - TLC - NVMe PCIe 3.0 x4 / HDD: 4x OPTIONAL / ODD: OPTIONAL / OS: OPTIONAL / Guarantee: 36 months incl. advance replacement (components)   Key Features 1.Processor 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors  2.System Memory Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz  in 12 DIMMs  3. On-Board Devices Single LAN with Intel® Ethernet Controller I210-AT Single LAN with Aquantia® AQC107 10G Ethernet Controller Single LAN with Realtek RTL8211E PHY (dedicated IPMI)  4.Expansion Slots 4 PCI-E 3.0 x16 3 PCI-E 3.0 x8 (in x16 slot) M.2 Interface: 4 PCI-E 3.0 x4, RAID 0 & 1  5. Input / Output 1 RJ45 Gigabit Ethernet LAN ports 1 RJ45 10GBase-T ports 1 RJ45 Dedicated IPMI LAN port 2 USB 2.0 ports (2 via headers) 6 USB 3.1 Gen1 ports (4 Rears Type A, 2 via headers) 4 USB 3.1 Gen2 ports (1 Rear Type A + 1 Rear Type C, 1 Type A + 1 Type C) 1 VGA port - dedicated for IPMI 2 COM Ports (1 rear, 1 header) 1 TPM Header

Mid Tower - Black / 900W High Efficiency PSU Platin Level / Single socket R4 (LGA2066) / 1x Intel® Xeon® W-2245, 8x 3.90GHz - 155W (Cascade Lake) / 4 x 8GB DDR4 ECC (128GB - max. 512GB) / Grafik: OPTIONAL / 7.1 HD Audio / Optical: Optional / 1x 1.0TB - TLC - PCI-E x4 NVMe M.2 + 1x 1.92TB - TLC - SATA 6Gb/s - 2,5" /  6x USB 2.0 (2x rear + 2 Front + 2x via headers) - 6x USB 3.0 (4x rear + 2x via headers) - 2x USB 3.1 (2x rear) - 1x RJ45 Gigabit Ethernet LAN port - 1x RJ45 5G LAN port - 1x VGA (IPMI) - 1x COM-Port (header) / OS: Microsoft® Windows 10 Pro - 64-bit /  Garantie: 36 months bring-in (Advanced Replacement) - optional: 36/60 month on-site service NBD PTC Creo Certified Workstation - Built For Product Engineers Zertifizierte Konfigurationen von PTC für Creo - Gebaut und getestet von Supermicro - Branchenführende Leistung für Konstrukteure   Key Features 1.Processor Intel® Xeon® W-2100 Processors, Intel® Xeon® W-2200 Processors  2.System Memory Up to 512GB Registered ECC RDIMM or up to 1TB Registered ECC LRDIMM, DDR4-2666MHz in 8 DIMMs  3. On-Board Devices Single LAN with Intel® PHY I219LM LAN controller Single LAN with Aquantia 5G LAN chip AQC108  4.Expansion Slots 3 PCI-E 3.0 x16 1 PCI-E 3.0 x4  M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1  5. Input / Output 1 RJ45 Gigabit Ethernet LAN ports 1 RJ45 5GBase-T ports 6 USB 2.0 ports (2 rear + 4 via headers) 6 USB 3.2 Gen1 ports (4 Rears Type A, 2 via headers) 2 USB 3.2 Gen2 ports (2 Rear Type A) 1 PS2 KB/Mouse 1 COM Ports (1 rear) 1 TPM Header

2U Rack - black (89x437x647mm) / 8x 3.5" Hot-Swap SAS/SATA (6Gb/s) / 800W - 80PLUS Titanium / Single socket P (LGA 3647) / Intel® C621 Chipset / 1x Intel® Xeon® Bronze 3204 - 6x 1.9GHz - 85W / 2x 8GB DDR4-2933 ECC reg. (total 16GB) / Dual-Port GigE - 2x RJ45 (onboard) + 1x RJ45 dedicated IPMI / Remote Management: IPMI 2.0 / 2x 480GB SSD - TLC - SATA 6Gb/s - 256-Bit AES / 4x 6.0TB - SATA 6Gb/s - 7.200 rpm - Enterprise Capacity HD / Microsoft© Windows 10 Pro / Guarantee: 36 months bring-in (Advanced Replacement) - optional: 36/60 month on-site service NBD   Key Features  1. Processor  2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors  2. System Memory Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz in 8 DIMMS  3. On-Board Devices 8 SATA 3.0 6Gbps (Software Raid 0,1,5 & 10) Dual LAN with 1GbE with Intel® I210 ASPEED AST2500 (IPMI)  4. Expansion Slots 2 PCI-E 3.0 x8 (in x16 slot), 4 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8 slot) M.2 Interface: 4 PCI-E 4.0 x4 (Software RAID 0,1,5,10)  5. Input / Output 8 USB 2.0 ports (2 rear + 6 via headers) 5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A) 1 VGA port 2 COM Ports (1 rear, 1 header) 1 TPM Header

4U Tower - Black / 668W High Efficiency PSU Platinum Level / Single socket H4 (LGA 1200) / Intel® Z490 Chipset / Intel® Core™ i7-10700 - 8x2.90GHz - 65W / 2x 16GB DDR4-2666 non-ECC unb. / Quadro P2200 - 4x DP +  Datapath Vision SC UHD2 (2x HDMI 2.0 - 4K60Hz) / 2x 2.0TB SATA 6Gb/s - 7.200 rpm - 128MB Cache - 24/7 / HDD or SSD: 3x OPTIONAL / Microsoft© Windows 10 Pro - DE / Guarantee: 36 months incl. advance replacement (components)   Key Features   Case: 4U / Full Tower Chassis  668W Platinum Level Certified High-Efficiency Power Supply Whisper-Quiet (<27dB) 8x 3.5" SAS/SATA Backplane for Hot-Swappable Drives Front HDD Door Lock & Side Panel Intrusion Switch Front I/O Ports: 2x USB 3.0 2x 8cm PWM Fans & 1x 9cm Rear PWM Fan 3x 5.25" External HDD Drive Bays & 8x 3.5" Hot-Swappable HDD Drives   Mainboard:  Intel® 10th Gen. Core™ i9 / i7 / i5 / i3 / Pentium® / Celeron® series Processor Intel® Z490 Express Up to 64GB Unbuffered non-ECC UDIMM, in 4 DIMM slots  Up to 128GB Unbuffered non-ECC UDIMM, in 4 DIMM slots (Limited to Gen 9th core i5/i7/i9) 4 PCI-E 3.0 x16 (16/NA/16/NA or 16/NA/8/8 or 8/8/16/NA or 8/8/8/8) 1 PCI-E 3.0 x1 M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1  2 DP (DisplayPort) ports, 1 HDMI port, Display port up to 1.2, HDMI up to 2.0a Intel® Z490 Express controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Single LAN with Intel® single Ethernet PHY i219V Single LAN with Aquantia® AQC107 10G Ethernet Controller

Mid Tower - Black / 900W High Efficiency PSU Gold Level / Single socket P+ (LGA 4189) / Intel® C621A Chipset / Intel® Xeon Silver 4309Y - 8x 2.80GHz - 105W / 8x 8GB DDR4-3200 ECC REG (total 64GB) / GPU: OPTIONAL / 2x SSD 512GB - TLC - NVMe PCIe 3.0 x4 / 2x SSD 3.84TB - TLC - SATA 6Gb/s / 2,5" / HDD: 4x OPTIONAL / ODD: OPTIONAL / Microsoft© Windows 10 Pro 64-bit DE / Guarantee: 36 months incl. advance replacement (components)  Key Features 1.Processor 3nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors 2.System Memory Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz  in 12 DIMMs 3. On-Board Devices Single LAN with Intel® Ethernet Controller I210-AT Single LAN with Marvell AQC113 Single LAN with Realtek RTL8211E PHY (dedicated IPMI) 4.Expansion Slots 4 PCI-E 3.0 x16 3 PCI-E 3.0 x8 (in x16 slot) M.2 Interface: 4 PCI-E 3.0 x4, RAID 0 & 1 5. Input / Output 1 RJ45 Gigabit Ethernet LAN ports 1 RJ45 10GBase-T ports 1 RJ45 Dedicated IPMI LAN port 4 USB 2.0 ports (3 rear, 2 via headers) 6 USB 3.2 Gen1 ports (4 Rears, 2 via headers) 2 USB 3.2 Gen2 ports (1 Type A, 1 Rear Type C) 1 VGA port - dedicated for IPMI 2 COM Ports (1 rear, 1 header) 1 TPM Header
